SONOFF RE5V1C Relay Module 5V WiFi DIY Switch Dry Contact Output Inching/Selflock Working Modes APP/Voice/LAN Control for Smart Home
Overview:
The 5V DC input, nano size and dry-contact output makes it different from traditional SONOFF product, this product is a wireless switch supports inching /self-locking mode. Users can add the device to the APP eWeLink in order to remotely control connected home appliances or devices.
Features:
* Low Power Supply:DC 5V low voltage input. Dry contact output.
* App Support:Free iOS and Android mobile App eWeLink.
* Remote ON/OFF:Turn electrical devices on/off from anywhere.
* Sync Status:Real-time device status provided to APP.
* Timing Function:Set scheduled/countdown timers to turn on/off at specified time.
* Share Control:Control your smart home together with your family
* Scene:Turn on/off a gang of devices with one tap.
* Smart Scene:Triggered on/off by temp, humidity or other environmental conditions from sensor.
* Voice Control:Compatibility perfectly with Amazon Alexa, Google Assistant, IFTTT, Google Nes.

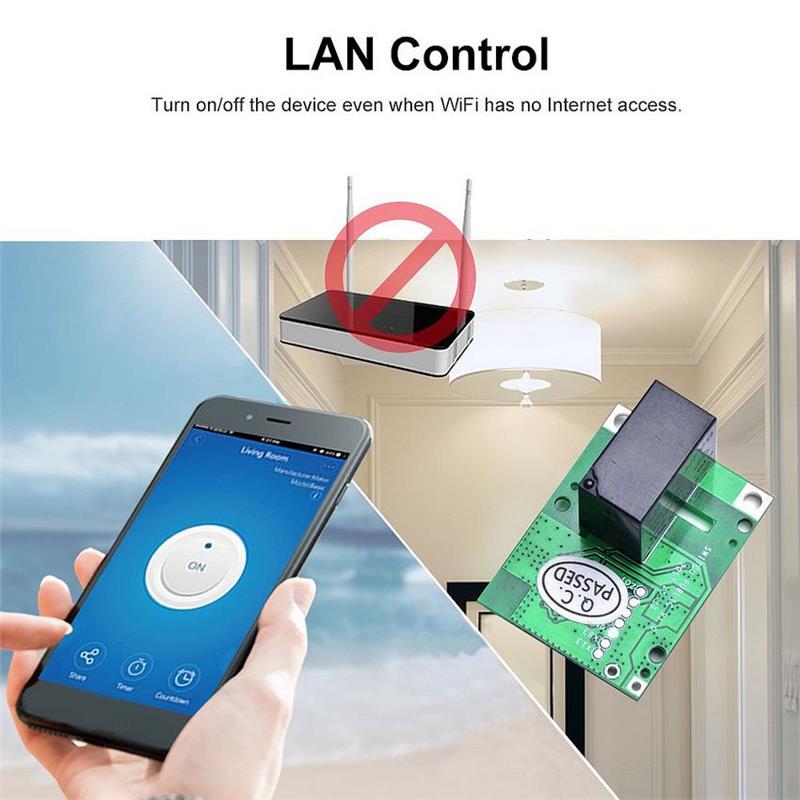

* LAN Control:Turn on/off the device even when WiFi has no Internet access.
* Nano Size, take up little space.
Two Working Modes:
(1) Self-locking mode:
When the module is switched to self-locking mode, users can turn on/off the connected appliance instantly.
(2) Inching mode:
When the module is switched to inching mode, users can press on/off toggle button to turn on or off connected device.There have two wiring ways to select:
Turn on 1s and then auto-off
Turn off 1s and then auto-on
Specification:
Voltage Input:DC 5V
Transmission mode:Wi-Fi communication
Wireless Standard:802.11 b/g/n
Working Modes:APP/Voice/LAN Control
APP Platform:free eWeLink for Android, iOS
Controlled lines:1
Humidity:5%-90%RH, Non-condensing
Operating Temperature:-20oC-70oC
Enclosure Material:Fire-retardant ABS
Package Information:
Package Size:Approx. 15 * 8 * 6 cm / 5.9 * 3.1 * 2.4in
Package Weight:Approx. 15g/0.53oz(1pcs)
Package Inlcuded:
1 x SONOFF RE5V1C WIFI Relay Module 5V
