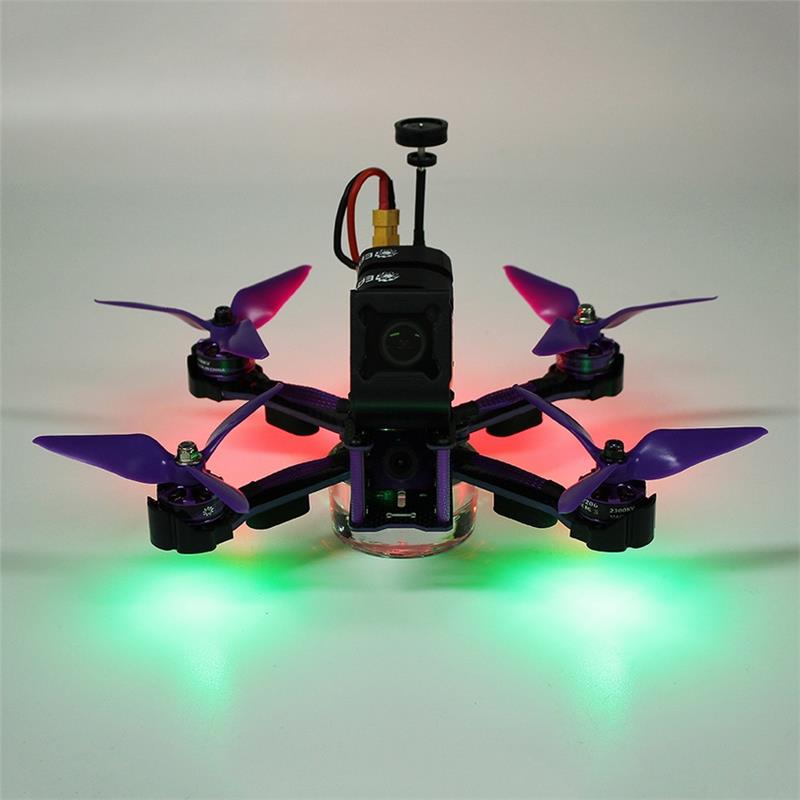

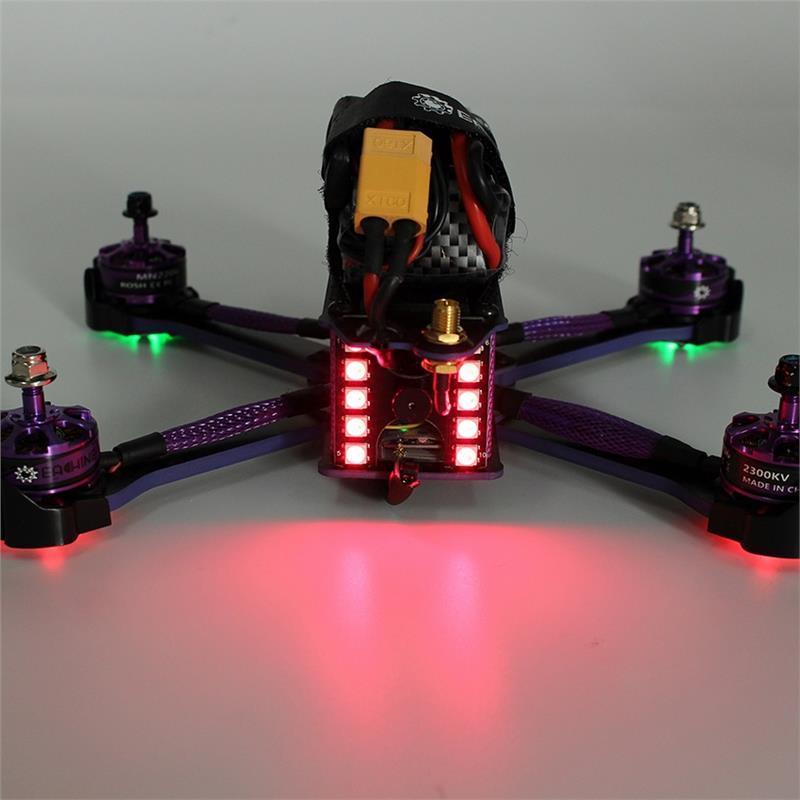

Eachine Wizard X220S FPV Racer RC Drone Omnibus F4 5.8G 40CH 30A Dshot600 2206 2300KV 800TVL CCD ARF
NOTICE:
Upgrade in new version.
1. Upgrade in new F4 Flight Controller with 9V 5V BEC Output
2. Upgrade in new 60A BL_S 4in1 ESC
Dear customers,
Attention please.
The flexible glue anti-vibration motor pad may cause the motor to slip, please check and tighten the screws before flying.
Best regards,
Banggood
Description:
| New Version | Old Version | |
| Flight Controller | Model:F4DUALBEC8MOTOR0616 Main Chip:STM32F405 Gyro:MPU6000 Barometer:BMP280 Blaxkbox:16M Motor Output:8 Size:37x37mm Mounting Hole:30.5×30.5mm BEC Output:9V, MAX. 2A ; 5V Max.3A |
Omnibus F4 V3 flight controller Size:36x36mm Mount holes:30.5×30.5mm STM32 F405 MCU, Runs Betaflight 3.0.1 firmware, could run faster loop time. Using F4 MCU controls OSD over SPI bus in DMA mode. OSD Configation has been included in Betaflight GUI. SBUS/PPM input (Pinheaders) 6PWM output (1-4Pinheaders and Sh1.0 Plug, 5-6 as Pinheaders) With barometer SPI Sensor MPU6000 Included 128Mbit Flash, please always use BEC for the FC. Supported by BETAFLIGHT and dRonin |
| ESC | Con. current:60A Peak current (10S):70A Input voltage:2-6S Firmware:blheli_s Size:37×42.7mm Mounting Hole:30.5×30.5mm Notice:iF use in 6S, Must solder the capacitor, which is included in package. |
Eachine 30A BLHELI_S 4 in 1 ESC Con. current:30A Peak current (10S):35A Input voltage:2-5S BEC:5V output Programming:YES Firmware:blheli_s Weight:28g Size:36*36MM |
| Item | Specification |
| Eachine Wizard X220S | Wheelbase:220mm Frame arm:4mm carbon fiber Weigh:356g (without battery and camera mount) Take off weigh:561g3K carbon fiber frame kit, 4mm thickness and 15mm width frame arms, the width is 10mm less than Eachine Wizard X220. Frame kit with camera angle scale and 30?? camera mount for Runcam 3 for Gopro session. Anti-vibration sponges to protect the racer frome crashing. |
| Eachine MN2206 2300KV motor | KV:2300 Max thrust:1100G Length:35MM NO.OF cell:3-5S Diameter:28MM Framework:12N14P Shaft:5mm Propeller:5 inch Weight:28g |
| Eachine 1179 800TVL CCD camera | Color:purple Sensor:CCD Resolution(horizontal center):800TVL Shell size:25mm*25mm Weight:11g Resolution:PAL:1980H?G1080 (2MP) Format:PAL Video output:1.0Vp-p/75?? Automatic gain control:0.25/0.50/0.75/1.00 adjustable, up to 55dB. AWB:ON/OFF Exposure mode:electron exposure Electronic shutter:1/50(1/60) – 1/100000 S Gamma correction:0.45/1.0 Synchronization method:internal synchronization Lens:standard 2.8mm lens Working voltage:DC12V (Wide Voltage, measured that can be work in 5-13V) Workig current:70mA (low power consumption) Workig temperature:-20??–60?? Humidity:0%~98% Strong backlighting effect |
| 5.8G 40CH 25MW 200mw 600MWswitchable transmitter | Video Format:NTSC/PAL Channel:40CH Operating Temperature:-10~85?? Connector:RP-SMA Female Antenna connector:RP-SMA Male |
| Eachine 5051 3-blade propeller | Color:Send Randomly Quantity:10 Pairs Mounting Hole:5mm |
This is the ARF version that comes without battery, charger, receiver and remote control.
Package included:
1 x Eachine Wizard X220S frame kit
2 x 2206 2300KV motor CW
2 x 2206 2300KV motor CCW
1 x Eachine 30A BLHELI_S 4 in 1 ESC
1 x Omnibus F4 V3 flight controller
1 x 1179 800TVL camera
1 x 5.8G 40CH 25MW 200mw 600MW switchable VTX
10 x Eachine 5051 3-blade propeller purple CW
10 x Eachine 5051 3-blade propeller purple CCW
1 x 30?? Camera Mount(For Runcam3/ for Gopro session)
1 x Pagoda antenna
2 x Battery strap
2 x Wrench
(Package doesn’t include Runcam 3, the Runcam 3 on the pictures for reference only.)
