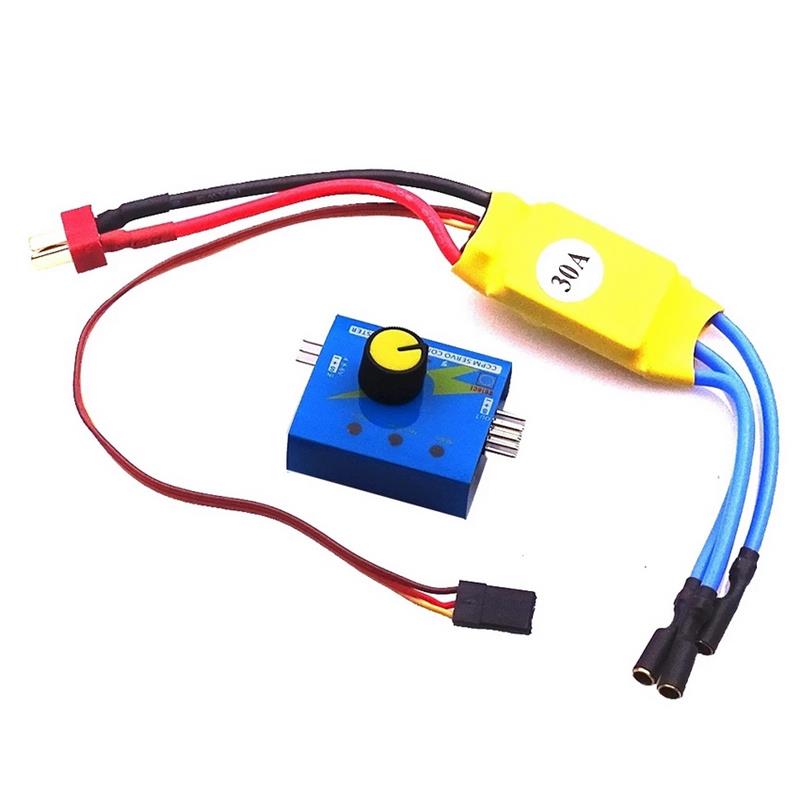

DC 12V 30A High-Power Brushless Motor Speed Controller 3-phase Regulator PWM Brushless Motor Speed Controller Driver
Feature:
With micro single-chip system, this speed control can achieve simple system programming, which can suit better high-speed high-power brushless motors.
It has several functions:
1. Safety Startup:To avoid any injury, the motor will not start up immediately if the potentiometer of speed controller is not at the lowest gear, which is necessary for high-speed high-power motor to protect user’s safety.
2. Temperature Protection:The speed control has aluminum heat sink, which allows it work at 30 A continuously. When temperature reaches 110 celsius degree, temperature detect system will send a protection signal and system will auto decrease 60% power output to protect speed control and motor. It will back to normal power after temperature is decreased. To protect the actuator module, please dissipate heat during long-time using.
3. The signal loss prevention:Auto shut down when there is no signal detected from PWM signal generator(potentiometer ).
4. Power Identification System:The speed control has power identification system, which is designed for high-speed high-power motors such as in model plane. It is not suitable for low-power brushless motors.
5. Programming Functions:With single-chip control system, some functions could be altered:
a, Startup:Flexible slow startup/direct startup
b, Braking:Reverse load quick braking/free braking
c, Adjustable Timing:Small/medium/large
d, Low Voltage Protection:Low/medium/high
e, Battery Types:Lithium /nickel chrome/NIMH/plumbic acid
6. Back to Factory Settings:Wrong operation can be cleared
7. Other Function(please ignore if only used for motor drive ):The external PWM signal generator can send signal to control speed or to turn steering gear, therefore it can test steering gears less than 55 g.
Specification:
Rated voltage:DC 6-12.8V
Current rating:32A (within 5s, max current can not exceed 40A)
Nominal power:360W
Rated Power:5V 0.5A
Temperature protection:110??C
Speed range:8%~98%
For motor poles:2-18 pole
Start:flexible start/immediate start
Brake:reverse load /no brake
Speed signal:8KHz/16KHz fixed frequency PWM
Package includes:
1 x Motor Speed Controller Driver
