MATEKSYS F411-WTE 100MHz STM32F411CEU6 Flight Controller Built-in OSD For RC Airplane Fixed Wing

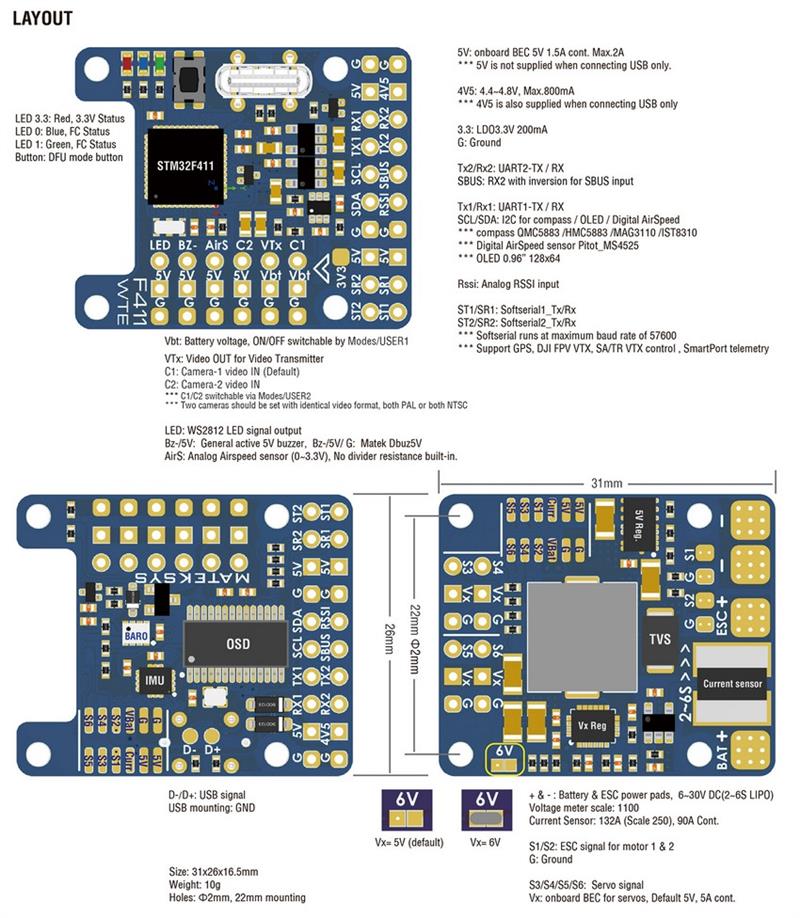

Specifications:
Brand Name:MATEKSYS
Item Name:F411-WTE
MCU:100MHz STM32F411CEU6
IMU:BMI270 (SPI)
Baro:SPL06-001 (I2C)
OSD:AT7456E (SPI)
Blackbox:No
2x Uarts
2x Full Softserial
6x PWM outputs (2x Motors, 4x Servos)
1x I2C
4x ADC (VBAT, Current, RSSI, AirSpeed)
3x LEDs for FC STATUS (Blue, Red) and 3.3V indicator(Red)
Built in inverter on UART2-RX for SBUS input
Switchable Dual Camera Inputs
Vbat power ON/OFF switchable for VTX and camera
PPM receiver:not supported
Power:
6~30V DC IN (2~6S LiPo)
132A Current Sense (Scale 250)
PDB/Current sense resistor:90A continuous, 132A burst.
BEC 5V 1.5A for FC & Peripherals
BEC Vx 5A for servos, 5V/ 6V option
Vbat for VTX and camera (ON/OFF switchable)
LDO 3.3V 200mA
Battery Voltage Sensor:1k:10k
FC Firmware:
INAV Target:MATEKF411TE ( INAV4.1 or newer)
Physical:
Dimensions:31 x 26 x 16.5 mm
Mounting:22 x 22mm, ??2mm
Weight:10g
Package Including:
1x FC F411-WTE
Dupont 2.54 pins (Board is shipped unsoldered)
